This article covers common problems known to activate the ABS light on some Ford products.

Although we direct this page at specific issues with trucks and vans, the diagnostic tips work for any ABS light problem.

At our fleet auto repair shop we’ve seen a large increase of anti lock light problems on older F150 trucks, F250 pickups and E-series cargo vans. These vehicles set front wheel speed sensor codes for both the left and right front wheels. auto repair manuals
Ford ABS Code For Open in Signal Wire

I performed a comprehensive visual inspection on several of the offending vehicles. it became clear that the sensors were all damaged where the wires attached to the head of the sensor.

Digging in and finding out what the cause of this common malfunction is a two-man operation.

I had another mechanic turn the wheel from lock to lock while I observed the front wheel speed sensor and the movement of the wiring.

The wire harness is pulled tight when the steering reaches the end of its travel. This constant stress at the point it enters the wheel speed sensor is the issue causing the code to set.

It eventually causes fractures in the signal wires, thereby turning on the Ford ABS light. The diagnostic trouble code is for intermittent signal input detected by the BCM (Brake Control Module).

Ford WSS and Harness

If I had caught this problem a little earlier a simple re-routing of the harness would have provided more slack and prevented damage to the parts.

Note that replacing this ABS part requires the removal of the rotor on most Ford applications, but not all. This would also have avoided looking for the best price on replacement wheel speed sensors.

On county vehicles you have to get three parts bids and submit the cheapest for approval. This extends the down time of the fleet vehicles, but assures efficient use of tax payer funds.

Ford ABS Light Problems

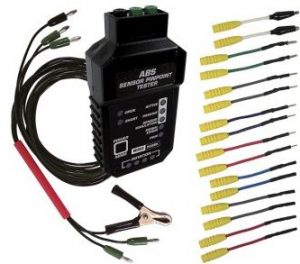

Waekon ABS tester
Waekon ABS tester

Mechanics often find wheel speed sensors at the root cause of issues since they’re exposed to harsh environments. Waekon makes an awesome universal plug in tester with all of the adapters included, but it’s not cheap.

So, you can probably guess my next move. I decided to dig into the technical service bulletins to see if I could find a factory issued TSB related to Ford wheel speed sensor problems.

Once again I wasn’t disappointed by the factory reporting process and found three separate technical alert publications about specific Ford ABS light repairs. The first one covered the problem mentioned above.

The second bulletin from the factory, describes another common anti-lock issue where the reluctor ring shows either a missing a tooth or damage from road debris. This is easy to see on a visual inspection.

If you have damaged or a broken tooth on the ring this can and will provide an intermittent signal to the front wheel speed sensor. A few different codes may set in this situation. This reluctor ring looks like a gear with teeth on it.

As the wheel rotates the teeth pass the magnetic wheel speed sensor and provides a reading that is translated into miles per hour. When the brake computer see’s the wheel isn’t moving it begins to pulse the brake calipers on that particular wheel.

If it receives false information or erratic signals it will turn on the warning light to notify the driver of a problem within the ABS system. This might also cause the ABS system to go active and pulse the brakes at low speeds when it is not necessary.

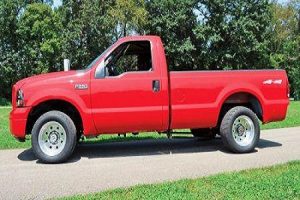

The 1999 Ford F250
The 1999 Ford F250

The last bulletin describes a problem that I have not seen myself, but is listed as a common problem with 1997 through 1999 Ford F150 and F250 2 Wheel Drive models only. The service publication describes a condition where the wheel speed sensor can work its way out of the spindle housing.

If this backs out from vibration or slamming pot holes an increased air gap forms between the reluctor ring and sensor. This can also cause false wheel speed data and set codes for intermittent signals.

The sensor body should be flush with the spindle housing. I have not seen this problem, but I know people who have and maybe you will too? The ABS bulletin recommends replacement of the sensor.

After talking it over with a few technicians in my shop we agreed it was worth while trying to re-seat the sensor before replacing it. You do this by pushing it inward, and seeing if the problem is solved. If this doesn’t work you can always replace the sensor at that point.

Note: On the left the Actron enhanced scan tool interfaces with the vehicles factory on-board diagnostics system (domestic vehicles 1996 and up). It reads brake system and OBD II codes, but make sure your vehicle is on the provided application chart. Innova makes a similar tool that’s only a few bucks more that I talk about below.

ABS Light Diagnosis

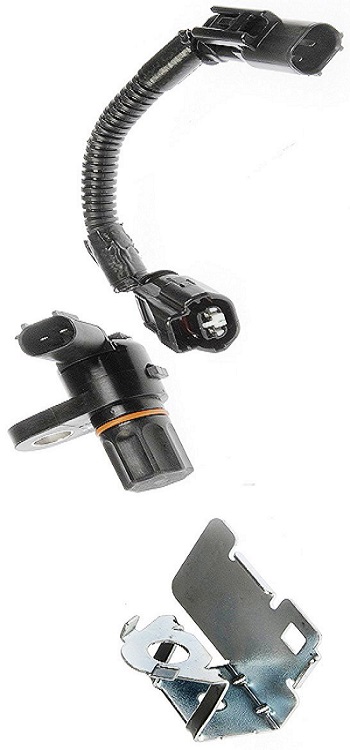

Wheel speed sensor
Wheel speed sensor

When the anti lock brake light comes on it may set different codes. Most cars and trucks have a speed sensor for each wheel. However, some older rear wheel drive vehicles use one sensor for the drive axle like the WSS on the right. This part can go bad as well.

I’ve also seen metal particles from the differential cause signal problems. Metal chips build up on the magnet or heavy particles become suspended in the fluid. This can reek havoc on the information sent back to the control module. But when the torn up differential situation worsens you’ll have a more serious issue to deal with.

Wheel speed sensor codes are definitely the most common failures in these systems. However, knowing which sensor is having the malfunction is very important for speedy diagnosis. Professional grade brake scan tools remain expensive  and this made it difficult for do-it-yourself mechanics to diagnose and repair system failures.

An updated Innova scan tool, with a model number of 31603 hit the market. The tool tells you why The amber ABS light is on. Make sure you check the vehicle coverage list provided. This scanner only works on most domestic vehicles and a few import cars from 1996 model year and up.

For more information on the satisfaction level of this tool click on the links and read the reviews from other do-it-yourself mechanics. I’ve used both brands and they’re about equal in coverage and performance.
