Ford Triton Spark Plug Replacement Problems

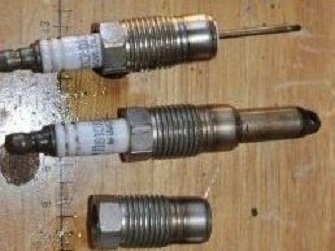

Broken Ford V8 Spark Plugs

This is a review of common problems with Ford Triton spark plug replacement.

We’ll also discuss a technical service bulletin released about the known issue.

Finally we’ll cover best practices before attempting removal and what to do with broken spark plugs in Ford V8 engines.

Some of these best practices I learned over the years and they might seem like common sense. However, I don’t see  a lot of technicians using these methods prior to removing the fragile plugs.

The goal is to reduce the chances of breaking them off in the cylinder head.

The problem is they’ve been installed for so long. The times I’ve performed the procedure nearly all the trucks had near or over 100,000 miles on the original equipment parts.

What is with Ford Spark Plugs

Different kinds of problems can plague vehicles as far back as 1997. I remember when the Explorer was experiencing spark plug blow out. This is where the parts would physically leave the cylinder head with the engine running and take the threads with it.

The technical service bulletin I’ll be discussing on this page refers to the more modern three valves per cylinder 5.4 L Ford V-8 engine.

This applies to model years 2004 through 2008. The problem is when you try to replace the spark plugs they can break or be difficult to remove.

The worst case scenario is pieces of the broken spark plug such as the platinum tip electrode and ceramic fragments can fall down into the cylinder.

If you can’t get the spark plugs out in one piece you may have to remove the cylinder to clean out the porcelain and metal debris. If you ignore this it can cause engine damage.

Many people have taken their vehicles in for what they thought would be a routine spark plug replacement, only to find out they were now faced with a large repair bill. In fact, it can cost over $1500 for removing the cylinder heads.

Triton Spark Plug Replacement Tips

Triton V8 Spark-plug

Some tips I’m going to share with you are from the factory technical service bulletin.

The TSB covers replacement and removal of broken plugs specifically for 3 Valve per cylinder V8 Triton engine.

I’ll also share a few things I’ve learned from the school of hard knocks while working on many different 5.4 liter V8 engines. The Government fleet I worked for had 100 of these trucks.

I have a picture of me performing this operation on a County owned F250. Needless to say I feel your pain and frustration with the task at hand.

Me Replacing Triton Plugs

The first step to me is very important. Before I start to replace the spark plugs on any Ford V8 engine with aluminum cylinder heads I soak the plugs down with penetrating oil.

I allow them to sit for several hours in penetrating oil before I start removal. This trick works even better if you let it soak, then try and gently move it about a quarter turn counter clockwise.

If successful give it another soak with the Kano Aerokroil fluid or equivalent. In almost every one of these I’ve done I have been able to get that quarter turn.

This helps allow the liquid loosen oil to get down to the problem area and work on the corrosion and soften the carbon deposits that are causing the problem.

Some people prefer to use carburetor cleaner instead of penetrating oil because what is stopping removal is mainly the carbon build up.

I have tried both types of fluid and they seem to work equally for me. The soaking time is critical. I set things up and find something else to work on.

Another couple of points on this step would be to go back and wet the area again so it doesn’t dry up. The head has a raised portion around the plug threads that holds the fluid nicely for a continuous soak.

Step two is probably more important then the first. Get the right tool for the job. They make a special tool to replace plugs on a Triton V-8 engine.

It looks like a standard spark plug socket but is slightly different. The special socket is designed to apply more pressure on the flats of the plug then on the corners.

This greatly increases the chances that the plug will come out in one piece. Note: It does not guarantee successful removal.

If the spark-plug does break it will leave the electrode and a piece of the porcelain in the cylinder head. The best chance at removing this is again with a special tool made for Triton spark-plugs.

The tool I have is made by Lyle (available above) I also put a broken spark plug remover from Cal Van (Below) that’s a little cheaper.

Both of these special tools work like an easy out with a left-handed thread. Detailed instructions are included with the remover tools.

Why Plugs Break in Triton V-8 Engines

The Triton V-8 is an all aluminum modular engine.

Modular meaning that many parts are interchangeable with other size engines in the product line.

Also in general, modular means larger sized or cast together components using larger sealing surfaces with fewer fasteners.

The Triton V-8s which include the popular 5.4 L used in many F series pickups and SUVs has a new style plug with a dual electrode tip.

It has a platinum tip electrode that extends the life to about 100,000 miles. Now to put this all together what’s going wrong is the plug has extended life and screws into an aluminum head.

They didn’t apply anti-seize compound at the factory to my knowledge.

The dissimilar metals of the spark plug and cylinder head coupled with a long service life just about welds the plug into place.

To make matters worse, carbon develops on the plugs where it sticks into the combustion chamber again making it harder to remove without breaking.

The Ford Triton spark plug is extremely difficult to replace for regular maintenance. In my opinion it needs to be done properly by someone who has done the procedure multiple times successfully.

It’s a good idea if you plan this maintenance service, to interview technicians performing the repairs. Make sure he owns a broken spark plug remover.

Otherwise be prepared for what can go wrong and the large expenses involved with removing the cylinder heads to extract the broken pieces. Or you could always trade the vehicle in before replacement is needed. Two updates worth mentioning.

After talking with other technicians about this issue, it seems the Lisle tool has a better success rate then the Cal Van. Second, people are telling me to shy away from the Champion replacement plugs.

They complain of random misfire and poor fuel economy. The Original Motorcraft parts are not the cause of the problem and can last 100K miles or better. They seem like a good choice.
