Fix EGR Codes and Turn Off the Engine Light

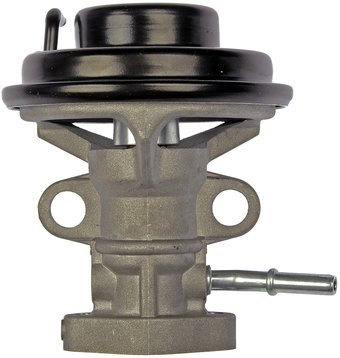

Vacuum egr valve

EGR codes are quickly climbing the ladder of the most common causes of check engine light problems found on aging automobiles. This is often due to carbon clogging passageways or improper operation of the egr-valve.

However, we often find EGR codes on Ford products caused by inexpensive plastic parts that falsely report position to the control module.

Several technical service bulletins for a wide variety of different makes and models have documented different problems associated with the EGR valve system.

With some exhaust gas issues you might set a diagnostic trouble code of PO401 or P0402. You may also set trouble codes for an engine misfire, which would be in the PO300 range.

It’s also possible your check engine light will not come on and you’ll just experience a noticeable problem such as rough engine idle or even engine stalling.

How Exhaust Gas Circulation Works

A basic explanation of the valve works would probably help with the understanding of the diagnosis and repair of EGR codes. Exhaust gas recirculation is necessary for emissions purposes. Unfortunately, when it malfunctions it can actually push emission levels off the chart.

EGR Diagram
EGR Diagram

The valve meters post combustion exhaust gases to be mixed with the intake fuel charge and this dilutes the mixture. Allowing exhaust gas to flow into the combustion chamber reduces cylinder temperatures and therefore reduces the amount of nitrogen oxides produced at the tail pipes.

Of course this system works hand in hand with other computer controlled on board emissions systems such as the catalytic converter and the upstream and downstream oxygen sensors to name a few.

When you mix exhaust gases with the air fuel mixture you also have a slower burn of the total fuel charge in the combustion chamber. This feature reduces or eliminate engine ping caused by early detonation.

This function is not needed at engine idle or when the vehicle is cold. This is why the EGR system is quite complicated and receives many inputs from other sensors that facilitate its operation.

The exhaust gas recirculation valve is solely responsible for metering the amount of exhaust that is mixed with the air fuel charge. It does this by opening a passage that is sealed by a cone shaped pintle valve.

When the pintle retracts exhaust flows from the exhaust system to the intake manifold, often located at the base of the throttle body so it has time to mix with the air/fuel charge.

Common Problems Set EGR Codes

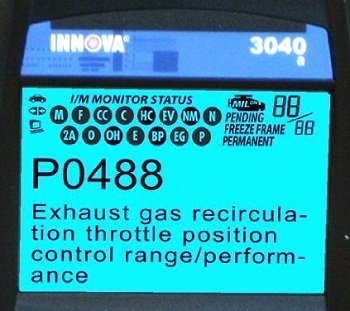

EGR Performance Trouble Code

There are several things that can malfunction in this system that will cause a check engine light failure code to set or cause rough running engine issues.

The one I see the most is the passageway from the exhaust to the intake is becoming clogged with carbon deposits.

This causes a condition where a lack of exhaust gas flows to the intake manifold.

The repair of this condition is removal of the EGR valve and inspection of the passageway to check for a blockage.

Each model vehicle has different procedures for clearing the passageway due to many different configurations of the system. Some Fords have a removable tube.

Exhaust Gas Flows when it Shouldn’t

Another common problem causing failure codes in this system is that the tip of the valve will become irregular shaped from carbon deposits. When this happens it no longer creates a perfect seal.

egr pintle diagram
EGR Pintle Diagram

This can allow exhaust gas to continue to flow when not called for by the computer. An example would be at engine idle or when the vehicle is cold.

These malfunctions can cause a rough engine idle and even a stalling condition.

But wait there’s more. Yet, another exhaust gas flow problem that I’ve seen is common on Mazda and Ford products. The failure in these specific vehicles is the development of rust on the shaft.

It makes the valve hang up and not close properly. Thankfully, they redesigned the replacement valve to prevent moisture intrusion into the component.

In this example, you may set codes. Although there is no specific code for rust on the valve shaft. This is why some common sense in diagnosis is necessary to solve these complex issues.

Some systems have valve position sensors like the fords mentioned above. You may find a code set for incorrect valve position. This may relate to a bad position sensor or an indication of the part hanging up.

Testing and Inspecting the Exhaust Valve

A good visual inspection with the valve removed is recommended to differentiate carbon issues from sensor failures. When I have EGR codes set I go right for the service manual or to see if there’s a technical service bulletin that covers the issue.

If not, I use the diagnostic repair diagram for the specific code set. This can often help you avoid replacing parts that are good and wasting valuable time. In the example of a plugged passage way you can repair this on the cheap.

Basically some carburetor cleaner and maybe a couple of gaskets depending on the year, make and model of the automobile. And where they decide to locate it. For more information about how the check engine light operates, why it comes and how to turn it off visit this next page.

It takes you to the check engine light info page. If you need answers to specific questions about your auto repair, the homepage is available from this next link. Find out why this car mechanic thinks some people can fix cars at home with some automotive repair advice.
